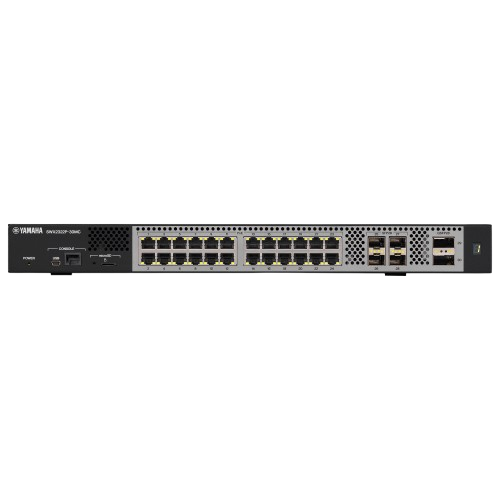

Bộ chuyển đổi mạng Yamaha SWX2322P-30MC

LAN ports

Standard: IEEE802.3 (10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/100BASE-TX)
Number of ports: 24
Communication mode: Auto negotiation
Connector type: RJ-45
Polarity: Automatic detection of straight/cross

QSFP28 ports

Standard: IEEE 802.3bm, IEEE 802.3ba, QSFP28 MSA, SFF-8665, SFF-8636, SFF-8436
Number of ports: 2

SFP28 ports

Standard: IEEE 802.3by, IEEE 802.3cc
Number of ports: 4

Console ports

Standard: RS-232C, USB 2.0
Connector type: RJ-45, mini-USB Type B (5-pin)
Data transmission speed: 9,600 bit/s

Switching capacity

1,080 Gbit/s

Throughput

803.57 Mpps, Frame size 64 byte (Non-blocking)

Latency

1.1μs/1.5μs/1.2μs/5.6μs/8.3μs/3.2μs/21.4μs (100G/25G/10G/5G/2.5G/1G/100M), Base on RFC2544 (Store & Forward, Frame size 64 byte)

Maximum number of MAC addresses

65,536

Link aggregation

Static setting, LACP (IEEE 802.1AX)

VLAN

Port VLAN, Tag VLAN (IEEE802.1Q), Private VLAN, Voice VLAN, Multiple VLAN

Maximum number of VLANs

4094 (VLAN ID 1–4,094) *VLAN ID 1 is the default VLAN ID.

Spanning tree

STP (IEEE 802.1D), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s) *STP and RSTP are supported via downward compatibility with MSTP.

Loop detection

Yes

DHCP snooping

Yes

Static routing

Yes

IP multicast

IGMP Snooping (v1/v2/v3), MLD Snooping (v1/v2)

ACL

IPv4 ACL, IPv6 ACL, MAC ACL

QoS

Priority queuing (CoS, DSCP, Port priority, Policy-based), Bandwidth limiting/Bandwidth Guarantee, Scheduling (SP, WRR), Shaping

Flow control

IEEE 802.3x (Full-duplex), back pressure (Half-duplex), HOL blocking prevention

Storm control

Yes

Management protocols

SNMP (v1/v2c/v3/Private MIB), RMON (v1/v2), sFlow

Security and authentication

Port Authentication (IEEE 802.1X authentication, MAC address-based authentication), Web authentication, Dynamic VLAN, Port security, RADIUS server

Program management

Update via TFTP/Web GUI, Update/Boot via microSD card

Support functions

Port mirroring, Port shutdown, Link speed downshift, Packet counter, Power saving mode (IEEE802.3az EEE), DHCPv4 (Server, Relay Agent, Client), DHCPv6 (Server, Client), IPv6 RA, Time management(Manual setting, SNTP), ProAV profile setting, Scheduling, System self-diagnostic, IEEE 1588 PTPv2 BC (Boundary Clock)(*), IEEE 1588 PTPv2 TC (Transparent Clock) (*), Cable diagnostics, endpoint monitoring, LLDP Auto configuration, Performance monitoring *Supports only 1 Gbit/s, 10 Gbit/s, 25 Gbit/s or 100 Gbit/s

Ports available for PoE power supply

24

PoE standards

IEEE 802.3bt type4 (class0–8)

Power supply system

Alternative A /Alternative B

Maximum power supply

Per port: 90 W
All ports: 720 W

Power supply (AC IN inlet)

AC100–240 V (50/60 Hz), AC IN inlet

Maximum power consumption

1100 W (1120 VA), 11 A, 3932 kJ/h

Chassis

Metal case, 4 fans

Kích thước (WxHxD)

430x44x400mm

Khối lượng

6.1 kg
