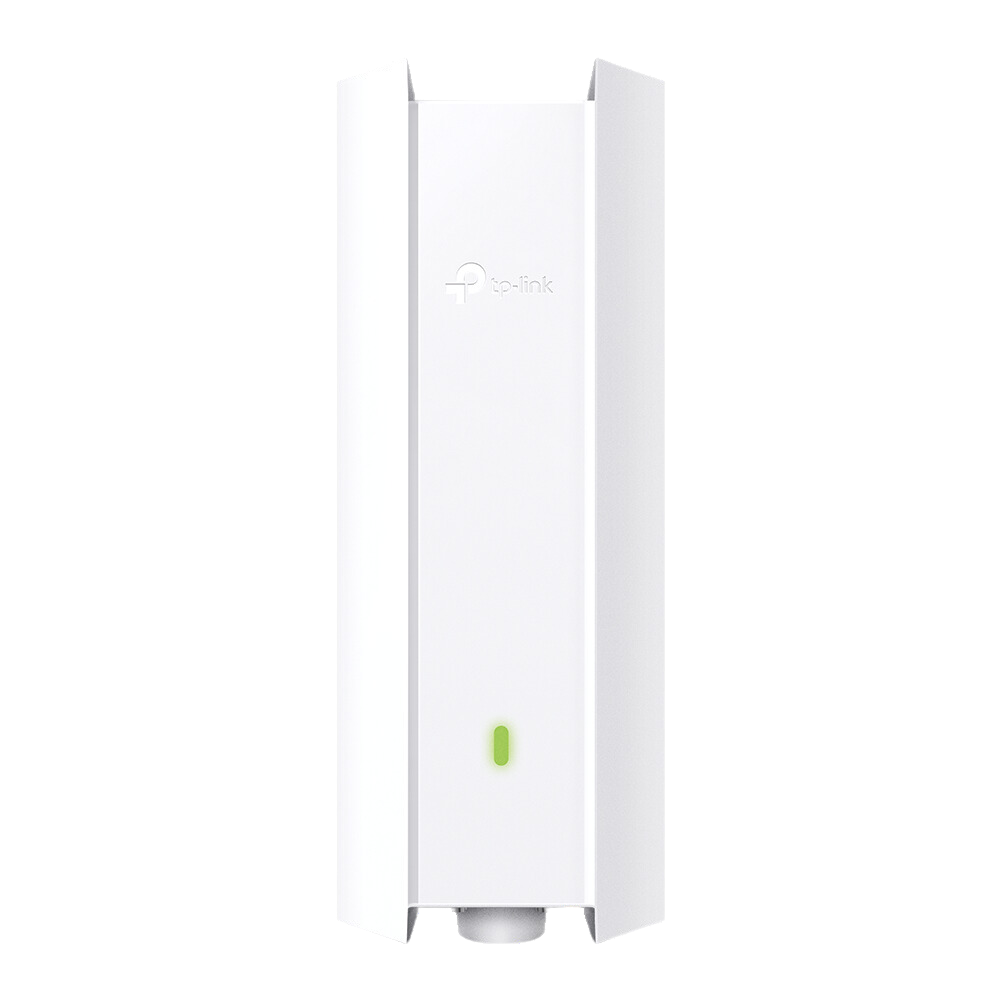

Access Point Omada Outdoor TP-Link EAP623-Outdoor HD

Giao diện

1x Gigabit Ethernet Port

Nút

Reset

Bộ cấp nguồn

• 802.3at PoE
• 48V Passive PoE

Note: PoE adapter is not included.

Kích thước ( R x D x C )

280.4 × 106.5 × 56.8 mm

Dạng Ăng ten

2× Internal Dual-Band Omni Antennas
• 2.4 GHz: 4.0 dBi;
• 5 GHz: 5.0 dBi

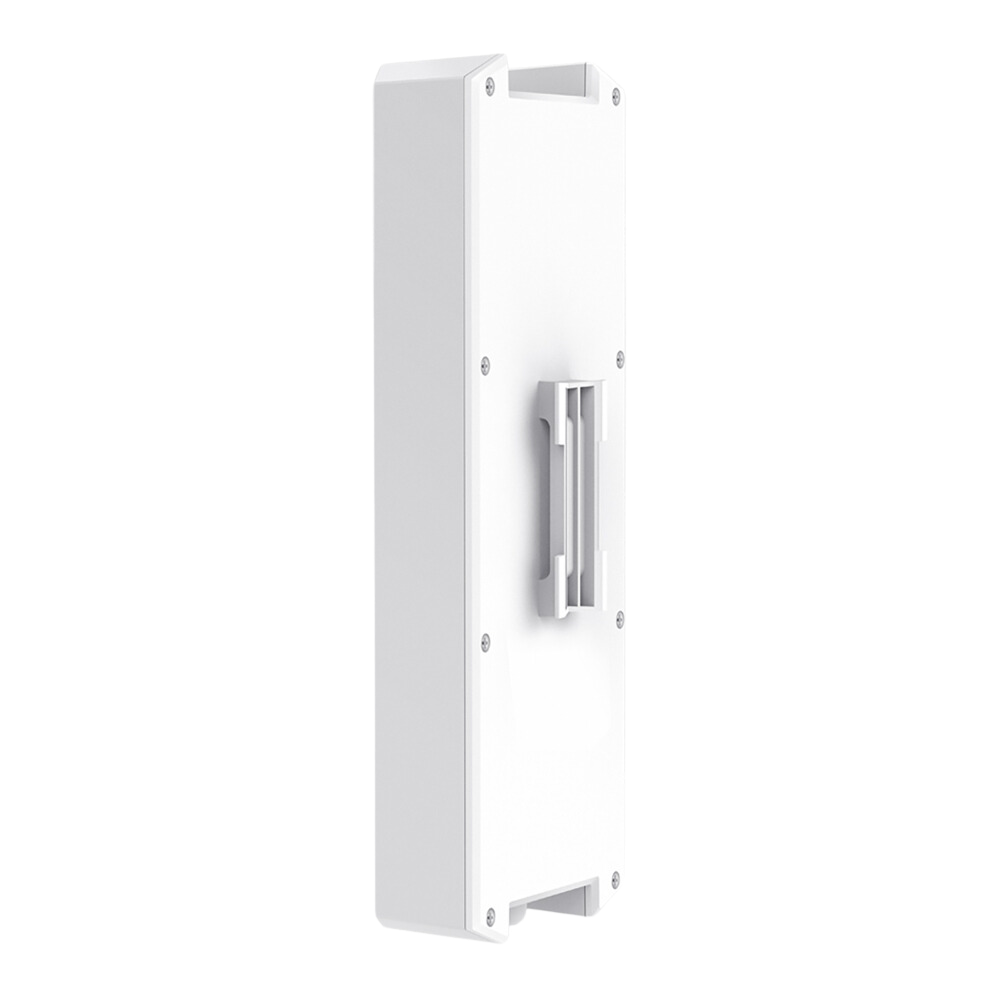

Lắp

Pole/Wall Mounting (Kits included)

TÍNH NĂNG WI-FI

Concurrent Clients

1,000+

Chuẩn Wi-Fi

IEEE 802.11ax/ac/n/g/b/a

Băng tần

2.4 GHz and 5 GHz

Tốc độ tín hiệu

• 5 GHz: Up to 1201 Mbps
• 2.4 GHz: Up to 574 Mbps

Công suất truyền tải

• CE: < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP);
• FCC: < 25 dBm (2.4 GHz), < 25 dBm (5 GHz)

Tính năng Wi-Fi

• Mesh△
• Seamless Roaming△
• Automatic Channel Assignment
• Load Balance
• Band Steering
• Beamforming
• Airtime Fairness
• Multiple SSIDs:16 (8 for each band)
• Wireless Statistics
• Wireless Schedule
• Reboot Schedule
• RADIUS Accounting
• MAC Authentication
• Static IP/Dynamic IP

Bảo mật Wi-Fi

• VLAN
• Access Control
• Rogue AP Detection
• Captive Portal Authentication△
• Maximum number of MAC Filter: 4,000
• Wireless Isolation between Clients
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
• 802.1X Support

QUẢN LÝ

Omada App

Có

Restore & Backup

Yes

Firmware update via Web

Yes

NTP

Yes

Centralized Management

• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller

Cloud Access

Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.

Email Alerts

Có

LED ON/OFF Control

Có

Quản lý kiểm soát truy cập MAC

Có

SNMP

v1, v2c, v3

System Logging Local/Remote Syslog

Local/Remote Syslog

SSH

Có

Quản lý dựa trên Web

Yes

Quản lý nhiều trang Web

Có

Quản lý VLAN

Có

Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller.

KHÁC

Chứng chỉ

CE, FCC, RoHS

Sản phẩm bao gồm

• EAP623-Outdoor HD
• Installation Guide
• Mounting Kit
• Waterproof Kit

Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux

Môi trường

• Operating Temperature: 0 °C–40 °C (32 °F–104 °F);
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing;
