Configuration:
Active 2-Way
Enclosure Type:
Loudspeaker
Total Power Capacity:
Bi-Amp:
800 W
Amplifier Power Rating:
2 x 800 W
HF Driver:
1 x 1″ / 25.4 mm Rotatable Horn Compression Driver
LF Driver:
1 x 8″ / 203.2 mm Woofer
Frequency Range:
60 Hz to 20 kHz ±3 dB
Frequency Response:
48 Hz to 20 kHz ±10 dB
Maximum SPL:
126 dB
Coverage Angle:
90° H x 50° V (Rotatable Horn)
Protections:
Output Limiter

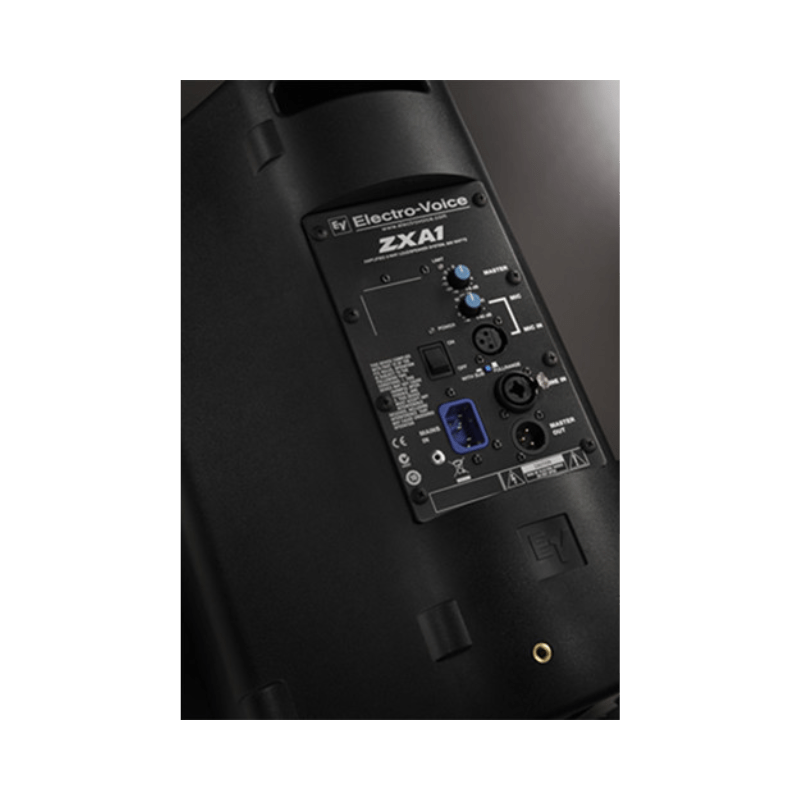

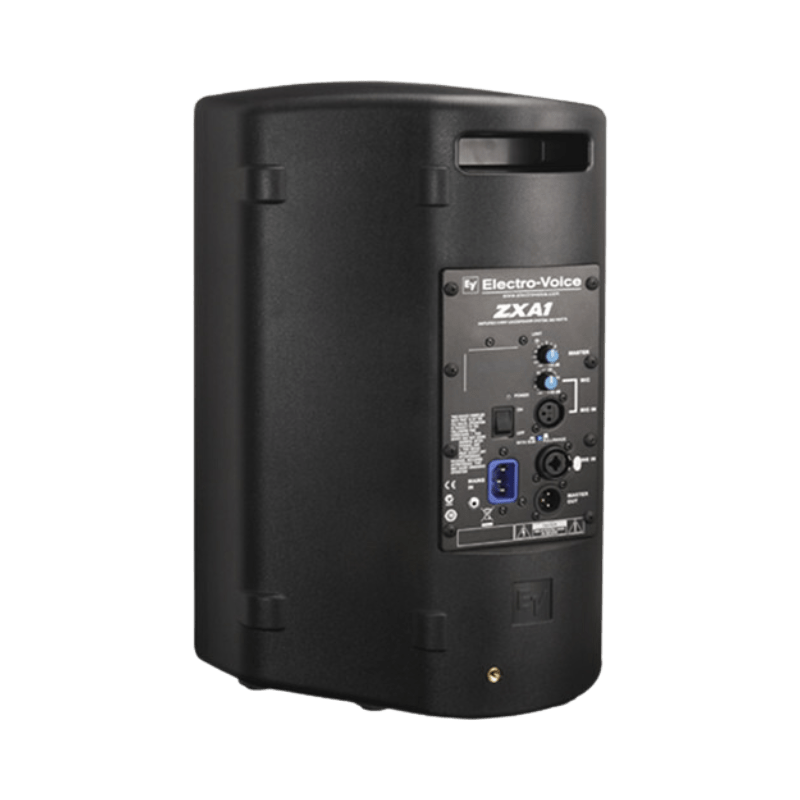

Audio I/O:
1 x XLR 3-Pin Female Balanced Mic Input
1 x Combo XLR-1/4″ TRS Female Balanced Mic/Line Output
1 x XLR 3-Pin Male Balanced Link
Network I/O:
No
USB:
No
Wireless Connectivity:
No
Crossover:
1.8 kHz
Alignment Delay:
No
Phase Adjustment:
No
AC Input Power:
80 to 110 VAC, 50 / 60 Hz
95 to 132 VAC, 50 / 60 Hz
190 to 264 VAC, 50 / 60 Hz
AC Power I/O:
1 x IEC Input
Current Consumption:
100 VAC:
0.7 A
120 VAC:
0.6 A
230 VAC:
0.4 A
Construction Material:
ABS, Steel
Dimensions:
18 x 11.1 x 10.4″ / 457 x 282 x 264 mm
Weight:
19 lb / 8.6 kg
Package Weight:
23 lb
Box Dimensions (LxWxH):
19 x 13.1 x 12″
