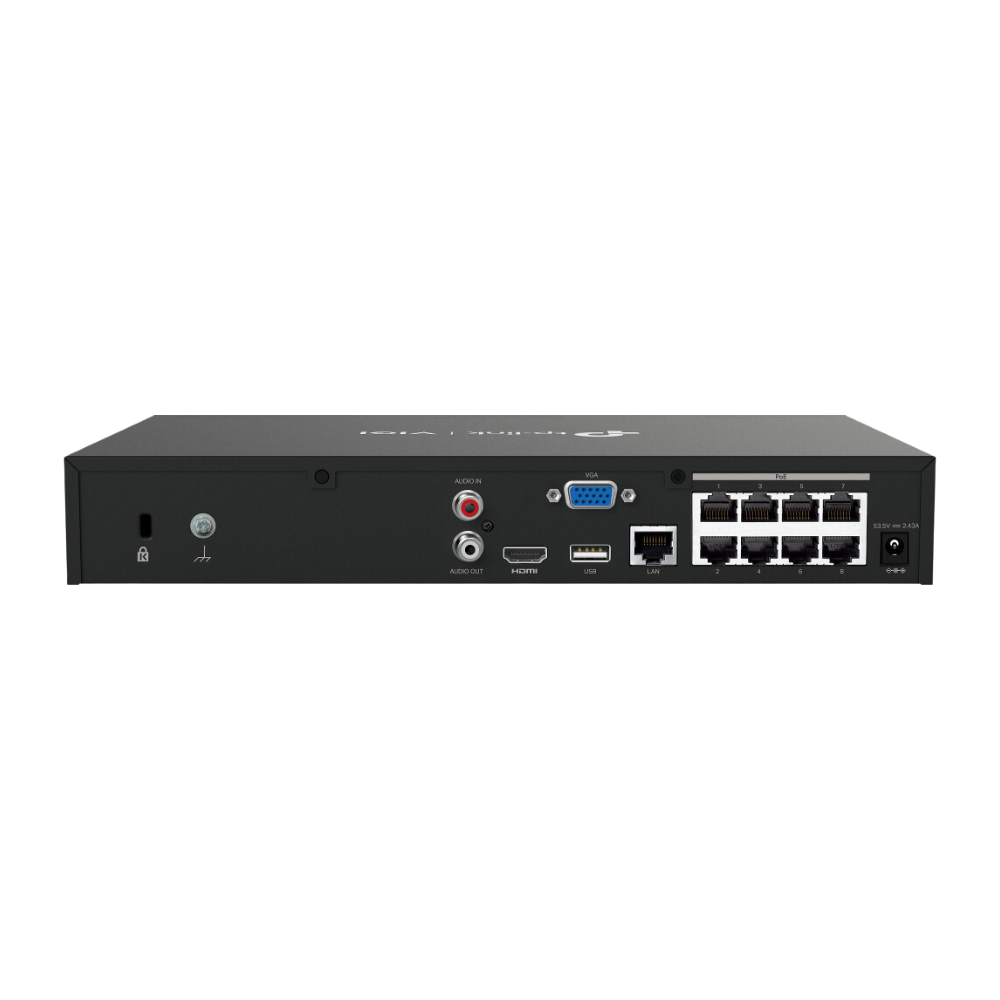

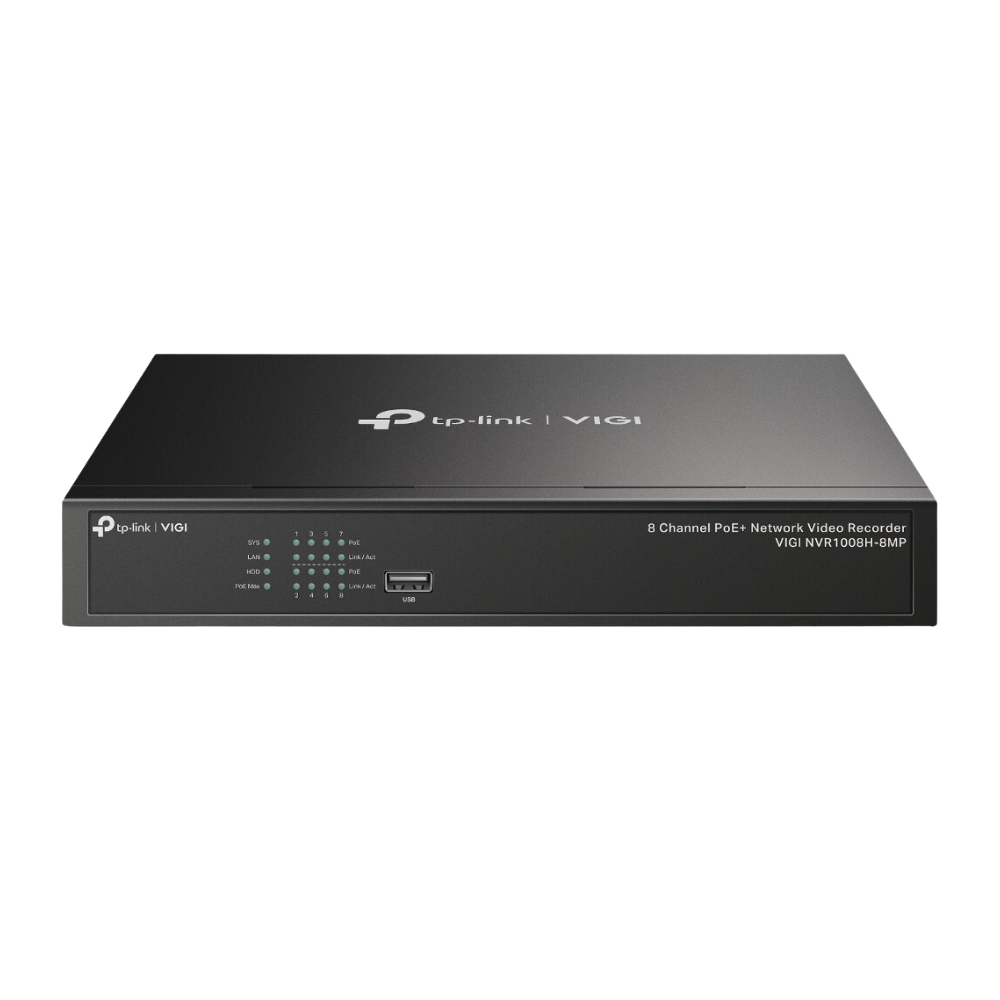

Đầu ghi hình camera IP 8 kênh TP-Link VIGI NVR1008H-8MP

Video and Audio

IP Video Input

8-Channel

Incoming Bandwidth

80 Mbps

Outgoing Bandwidth

60 Mbps

HDMI Output Resolution

1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz

VGA Output Resolution

1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz

Video Output Mode

HDMI/VGA Independent Output

Multi-View Display

1/4/6/8

DECODING

Audio Compression

G.711A/G.711U/G.726

Video Compression

H.265+/H.265/ H.264+/H.264

Record Resolution

8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Synchronous Playback

8 Channel

Capability

2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP

Record Management

Record Mode

• Manual Recording
• Scheduling Recording
• Motion Detection Recording

Playback Mode

• Instant Playback
• Regular Playback
• Tag Playback
• Event Playback

Backup Mode

• Regular Backup
• Video Clip Backup

Playback Function

• Play
• Pause
• Stop
• Fast Forward
• Fast Backward
• Play By Frame
• Full Screen
• Video Clip
• Export Clip
• Digital Zoom
• Lock Recording
• Audio On/Off

MẠNG

Giao thức

UPnP (Plug and Play), NTP (Network Timing), TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP

Mobile Phone Access

Android, iOS

Trình duyệt Web

Chrome (57+), Firefox (52+), Edge (91+)

Interoperability

ONVIF Profile S, CGI

External Interface

Network Interface

2, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface

USB Interface

2 Front USB 2.0 Ports, 1 Rear USB 3.0 Port

Audio Interface

1-ch RCA Input; 1-ch RCA Output

Alarm In/Out

16/4

Serial Interface

1, RS232

Power

1× AC Jack

Reset Button

1

Speaker

N/A

eSATA

N/A

HDMI

1

VGA

1

HARD DISK

SATA

4 SATA Interfaces

Capacity

Up to 16 TB Capacity for Each HDD*

Alarm

General Alarm

• Motion Detection
• Video Tampering
• Line-Crossing Detection
• Intrusion Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned/Removal Detection
• Vehicle Detection
• Human Detection
Note: The alarm function requires the use of a camera.

Anomaly Alarm

• Video Loss
• Offline and IP Conflict
• Disk Exception
• Login Exception
• Fan Exception
Note: The alarm function requires the use of a camera.

Alarm Linkage

• Recording
• White Light Alarm
• Buzzer
• Log
• Audible Alarm
Note: The alarm function requires the use of a camera.

THÔNG TIN CHUNG

Storage Temperature

-40–70 °C

Storage Humidity

10%~90% RH Non-Condensing

Sản phẩm bao gồm

• VIGI Network Video Recorder
• Mouse
• Installation Guide
• Power Cord
• HDD Power Cables
• HDD Data Cables
• Terminal Blocks
• Mounting Brackets
• Screws
• Rubber Feet

Working Temperature

• NVR: -10–55 °C
• Power Adapter: 0–40 °C

Working Humidity

10%~90% RH Non-Condensing

Kích thước ( R x D x C )

294 × 180 × 44 mm

External Power Supply

100-240 VAC, 50 to 60HZ, 1.5A

Khối lượng tịnh

1.12 Kg

Power Supply

100-240 VAC, 50 to 60HZ, 1.5A

Power Consumption

• 5 W (Without Disk)
• 48 W (With Disk)

Chứng Chỉ

CE, EAC, UKCA, RCM, Triman, RoHS, VCCI, FCC, IC, HDMI
