Number of Analog Input Channels :
16 (16 Mono)
Number of Mic Preamps :
16
Number of Analog Output Channels:
8
Max I/O Capacity:
20 x Input / 12 x Output
Mix Routing:
1 x Stereo Main LRC
6 x Bus
2 x Mono Matrix
2 x Stereo FX Return
Presets:
200 x Scene
13 x Preset (Factory)
Display:
Main Display:
9″ LCD Touchscreen
Faders & Level Adjustment:
9 x 3.9″ / 100 mm Motorized Fader(Touch Sensitive)
Gain/Trim Range:
0 dB to +64 dB
Input Pad:
‘-24 dB
Input Polarity:
Normal/Reverse
Dynamic Processing:
Compressor, Gate
EQ:
Input Channels, Output Buses, Outputs, Subgroups, FX Returns:
4-Band Parametric
Graphic EQ:
Yes
Built-In Effects:
18 x Effect (Type Unspecified)
Real Time Analyzer:
No
Audio Delay:
Adjustable Up to 1000 ms
Sample Rates:
48 kHz
96 kHz
Bit Depth:
Record:
24 / 32-Bit
Converter Dynamic Range:
D/A:
110 dB
Latency:
< 1.3 ms (Analog Input to Main Output)
Frequency Response:
20 Hz to 20 kHz +0.5/-1 dB
Max Input Level:
Mic/Line Input:
+24 dBu
Output Level:
Output:
+24 dBu
Analog Dynamic Range:
Output:
110 dB
Headphone Output Power:
2.5 mW
100 mW (Max)
I/O Impedance:
Combo XLR-1/4″, XLR Line/Mic Input:
10 Kilohms (Balanced/Unbalanced)
XLR Output:
75 Ohms
Headphone Output:
10 Ohms
Crosstalk:
‘-100 dB
EIN:
‘-126 dBu at Max Gain (2901653035)
Noise Floor:
‘-84 dBu A-Weighted
THD:
< 0.01% at Min Gain (+4 dBu)
Signal Generator:
Yes

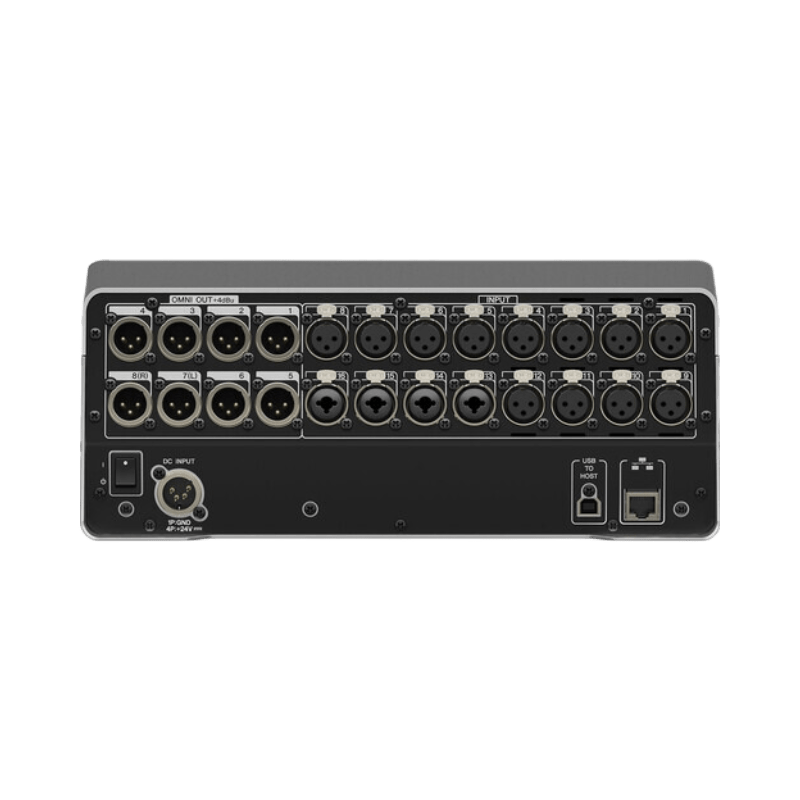

Analog Inputs:
12 x XLR 3-Pin Balanced Mic/Line Input
4 x Combo XLR-1/4″ 3-Pin Balanced/Unbalanced Mic/Line Input
Analog Outputs:
8 x XLR Balanced Output
Digital I/O:
1 x RJ45 Ethernet (Network)
MIDI I/O:
No
USB:
1 x USB-B (Host Connection, Multitrack Record)
1 x USB-A (2-Track Record, Audio Playback, Control, External Memory)
USB I/O Capacity:
18 x Input / 18 x Output
Expansion Ports:
No
Mobile App Compatible:
Yes: iPadOS Only
App Name: DM3 Editor
*As of April, 2023: Check with manufacturer for the most up-to-date compatibility
Max Multitrack Recording:
18 Tracks
File Format Support:
Playback: MP3, WAV
Record: MP3, WAV
Internet Connection:
Yes
AC Input Power:
100 to 240 VAC, 50 / 60 Hz
DC Input Power:
24 VDC at 2.5 A
Power Consumption:
43 W
Rack Mountable:
Yes
Operating Temperature:
32 to 104°F / 0 to 40°C
Storage Temperature:
‘-4 to 140°F / -20 to 60°C
Dimensions:
12.6 x 5.5 x 17.9″ / 32 x 14 x 45.5 cm
Weight:
14.3 lb / 6.5 kg
Package Weight:
20.21 lb
Box Dimensions (LxWxH):
21.7 x 17.7 x 9.4″
